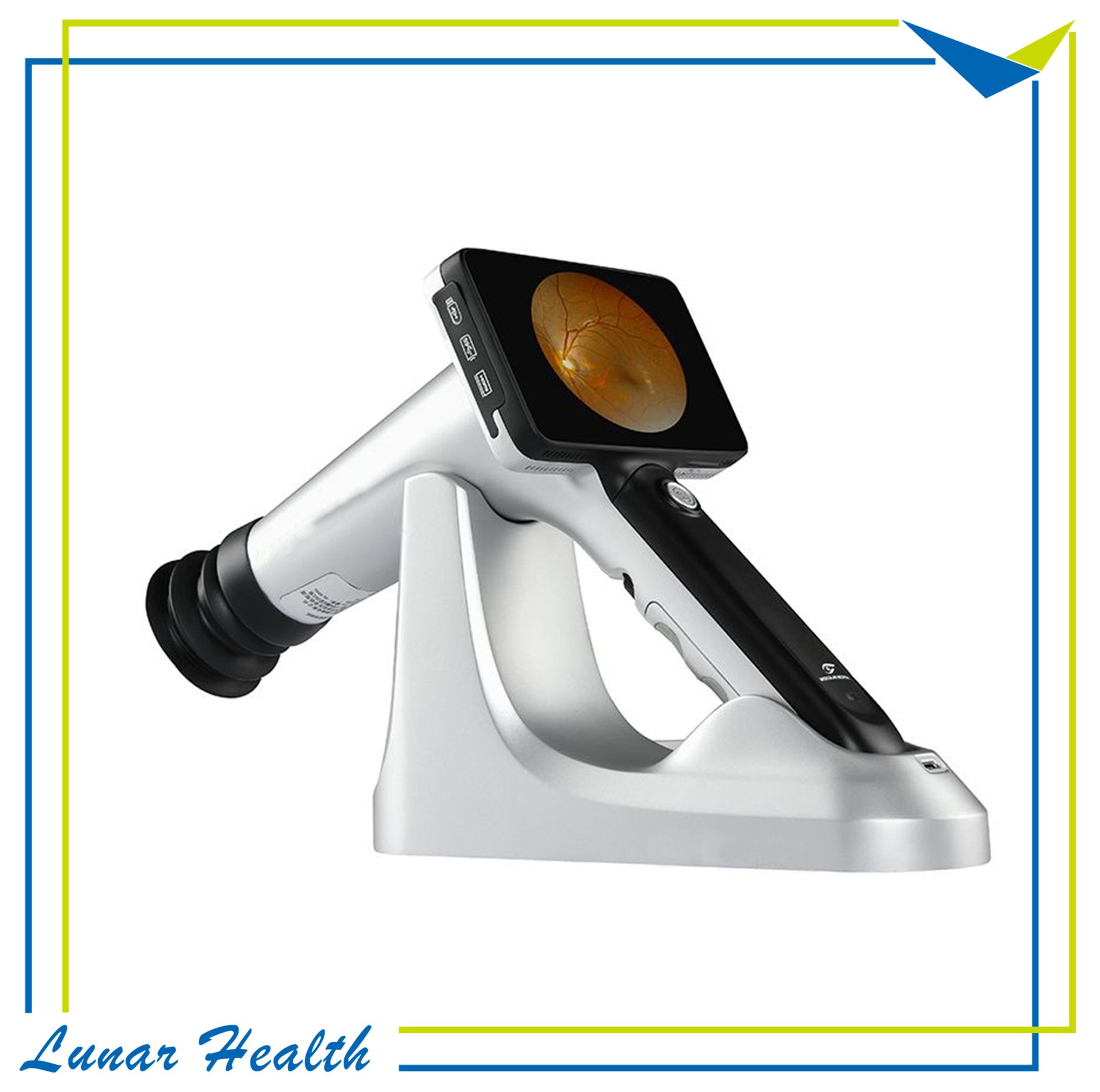

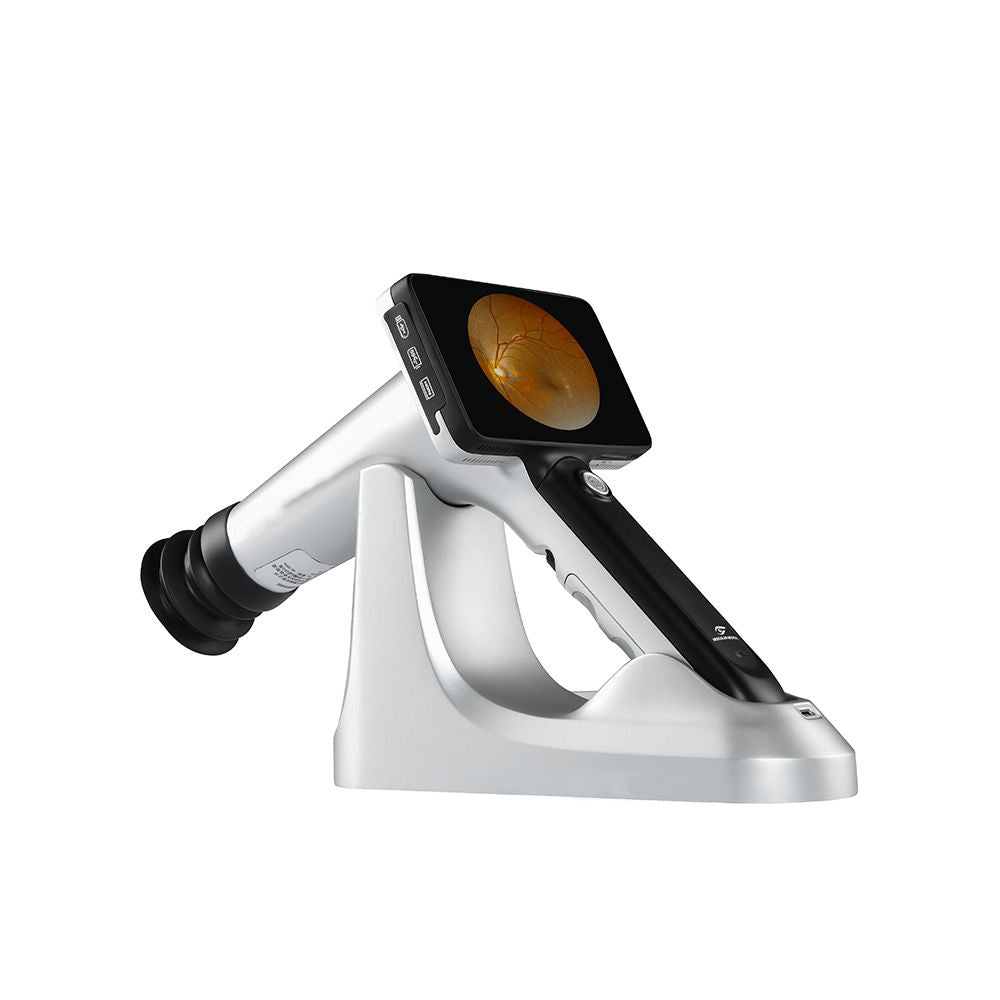

Ophthalmic Portable Hand-Held Fundus Camera Equipment Instrument

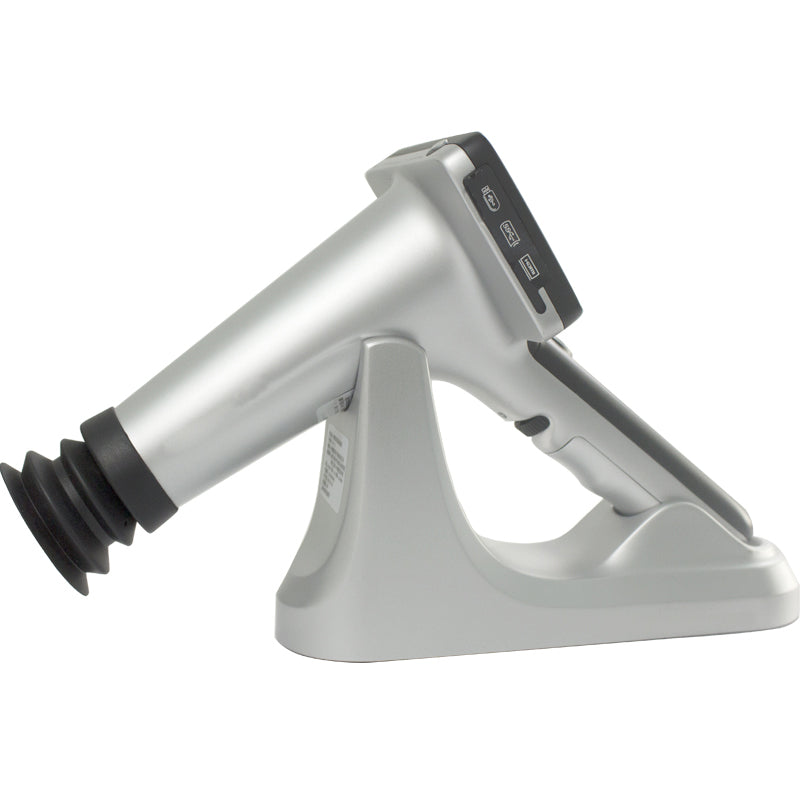

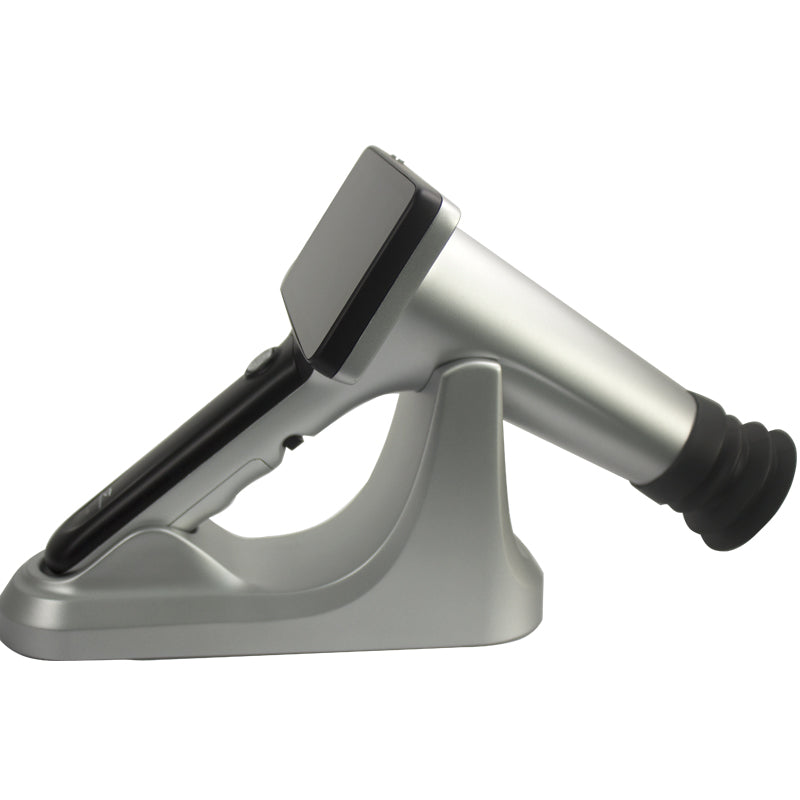

Portable stand makes shooting more stable and reliable

The second-generation optical system effectively reduces image noise, making details of funds image clearer and more realistic.

The main unit weight is less than 600 grams for easy carrying more stable and reliableefectively reduces imagenoisemaking deta600 grams for easy carrying.

Non-Mydriatic

Non-mydriatic minimum for p2.5mm pupil shooting support

Multi-point Fixation

Artificial star point guidance technology can cover the fundus area of 90° field of view. auto focus.

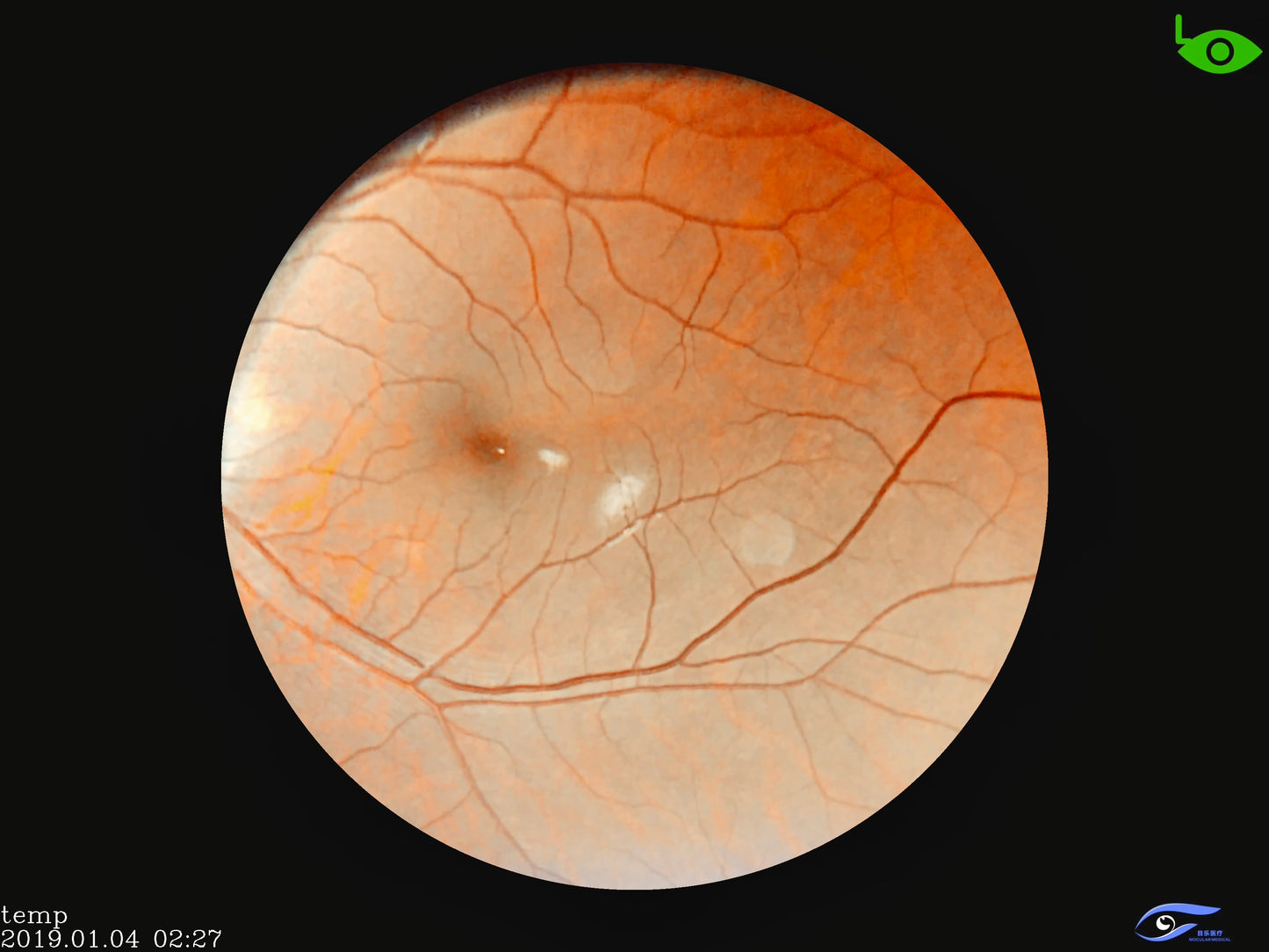

High-Definition Fundus Imaging

4.7-inch high-definition multi-touch screen with 12 million pixels makes the image more reductive and more realistidy.

AI

GPU parallel computer hardware architecture supports deep learning technolagy seamlessly connects to third-party Al platforms

TECHNICAL PARAMETER

Type：Non-mydriatic Portable

FOV：50°

Sensor Resolution：12 Million Pixels

Minimum Pupil Diameter：2.5mm

Working Distance:24mm

Light Source:White LED&Infrared LED

Focus:Manual/Auto focus

Screen Display:4.7-inch Multi-touch Screen (Anti-glare）

Memory:4G+64G

Main Frequency: 4Cores@2.2GHz

Data Transmission: USB3.0，WIFl，Bluetooth，SD,Type-C

Other Functions: 4G，NFC

Operation Hours: >8 Hours

Charging Time: <2 Hours

Net Weight<600g
