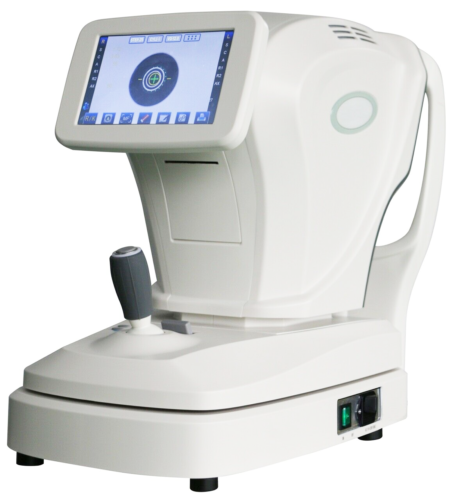

High-Precision Auto Refractometer: Fast, Accurate, and User-Friendly
Share
In today’s eye care industry, a reliable and accurate auto refractometer is essential for improving efficiency and ensuring precise diagnostics. This advanced Auto Refractometer offers a powerful combination of technology, usability, and precision, making it an ideal tool for optical shops, eye clinics, and hospitals.
Key Specifications & Measurement Ranges
Spherical Power (SPH): -30.00D to +25.00D (VD = 12mm; Unit options: 0.01D, 0.06D, 0.12D, 0.25D)
Cylinder Power (CYL): 0.00D to ±10.00D (Unit options: 0.06D, 0.12D, 0.25D)
Axis: 1° to 180° (1° steps)
Vertex Distance (VD): 0.0, 12.0, 13.75, 15.0mm
Pupil Distance (PD): 10–86mm
Pupil Diameter: 2.00–8.00mm
Measuring Time: ≤ 0.5 seconds
Radius of Curvature: 5.0–10.0mm (0.01mm steps)
Corneal Power: 33.00D–67.00D (Refractive index = 1.3375)
Corneal Astigmatism: 0.00D to -15.00D (Unit options: 0.06D/0.12D/0.25D)
Data Storage: Up to 10 results for each eye
Advanced Optics & Imaging System
Equipped with Hartmann-Shack imaging technology, this device ensures high-precision measurements and stable results. The refined optical system provides clear imaging, enabling accurate data even in complex cases.
Smart Design & User-Centric Features
7” SHARP Adjustable TFT Touchscreen – Intuitive interface with adjustable viewing angle
Motorized Chin Rest – Enhances comfort and ease of alignment
Built-in 57mm Thermal Printer – Supports auto paper cutting and flexible print settings:
Auto/manual printing mode
Print all data or average values (REF/KER/SE/BC)
Print pupil diameter and refractive charts (optional)
Intelligent Operating Modes
Adult/Child Mode Selection
Auto/Manual Measurement
Auto/Manual Tracking & Focusing (on certain models)
Auto Fogging Chart – Improves accuracy by stabilizing accommodation
Cylinder Forms: Negative, Positive, or Mixed (±)
Power & Dimensions
Power Supply: AC 100–250V, 50/60Hz (compatible worldwide)
Gross Weight: 52 lbs
Packing Size: 29" (L) × 16" (W) × 25" (H)
Warranty: 10 Year
