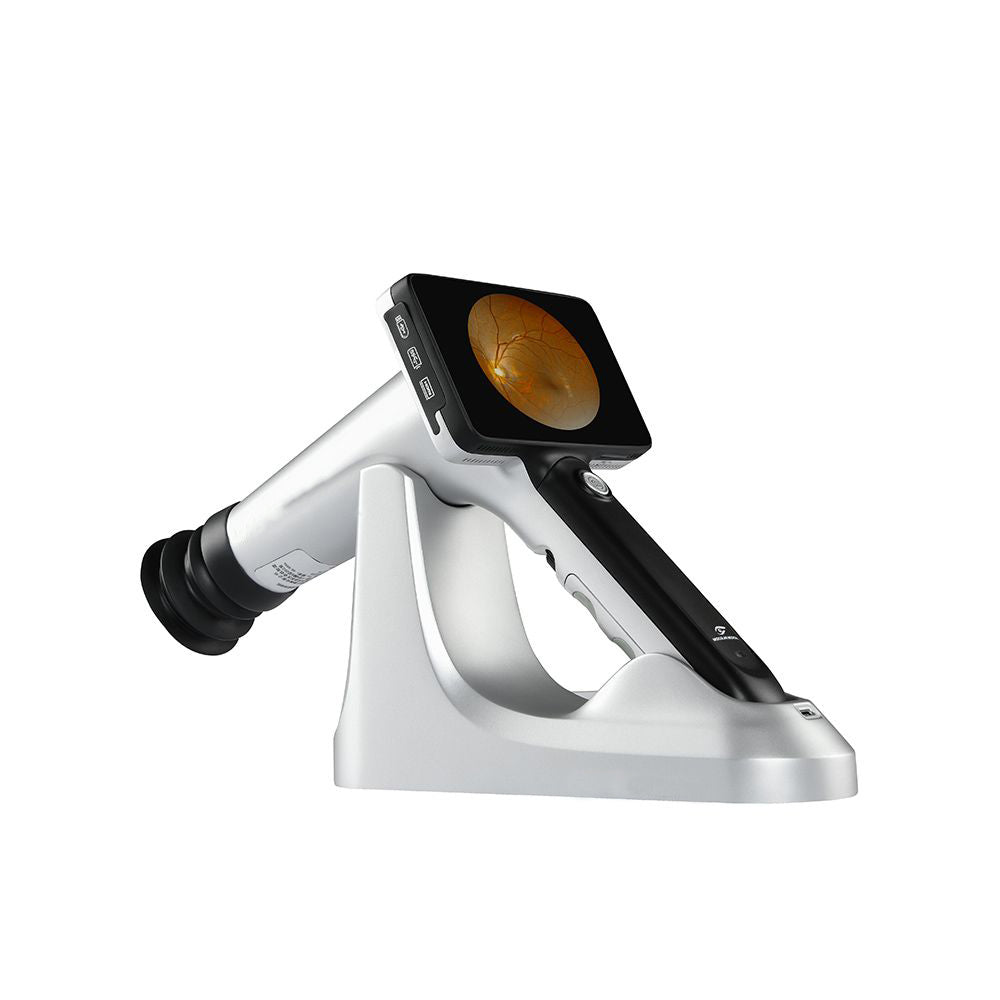

Ophthalmic Portable Hand-Held Fundus Camera Equipment Instrument

Features

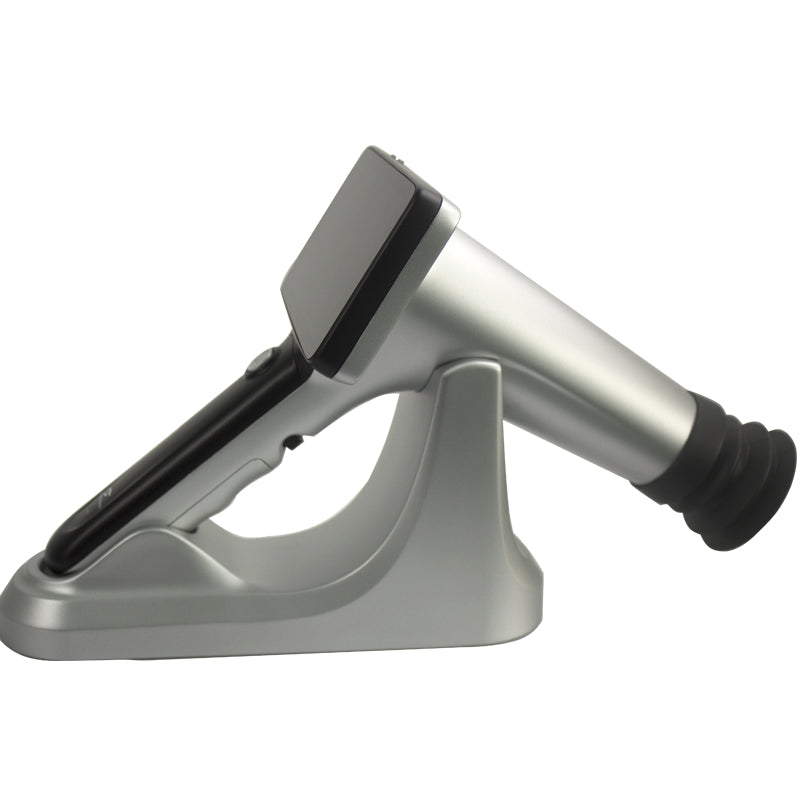

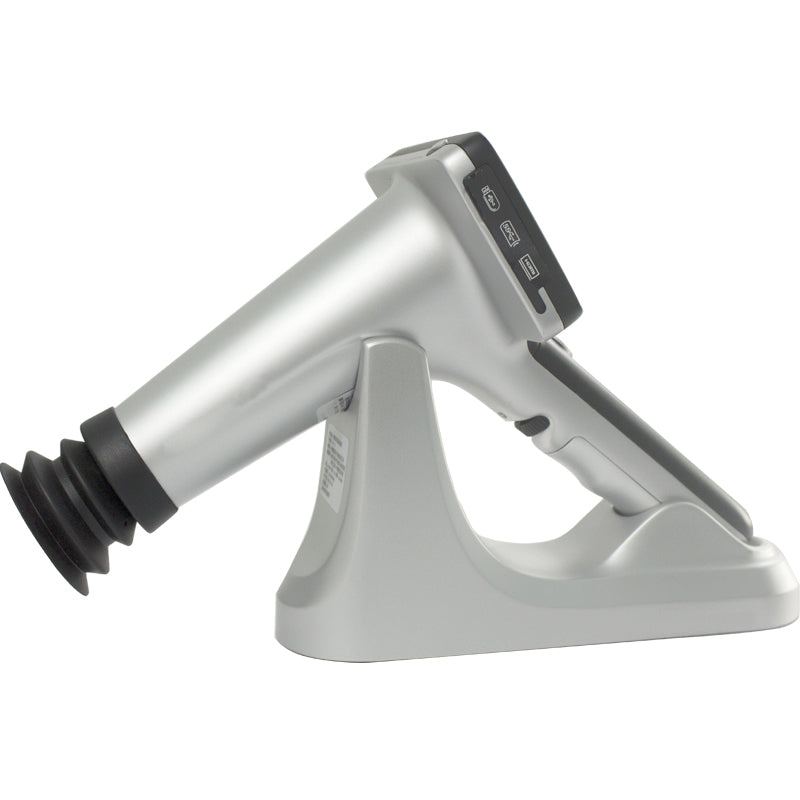

• Portable stand makes shooting more stable and reliable

• The second-generation optical system effectively reduces image noise, making details of funds image clearer and more realistic.

•

  The main unit weight is less than 600 grams for easy carrying more stable and reliableefectively reduces imagenoisemaking deta600 grams for easy carrying.



  Non-Mydriatic

  Non-mydriatic minimum for p2.5mm pupil shooting support



  Multi-point Fixation




  Artificial star point guidance technology can cover the fundus area of 90° field of view. auto focus.

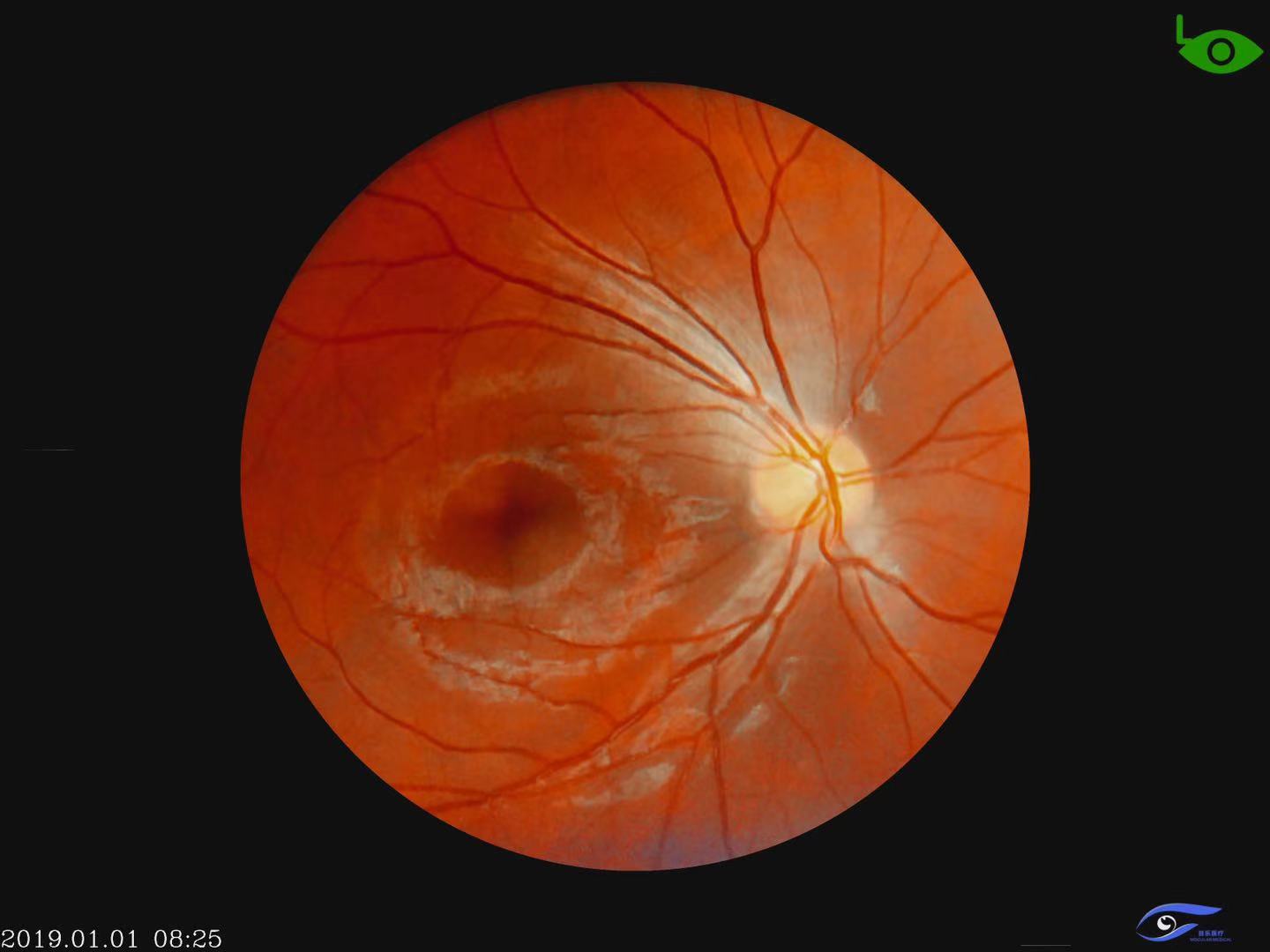

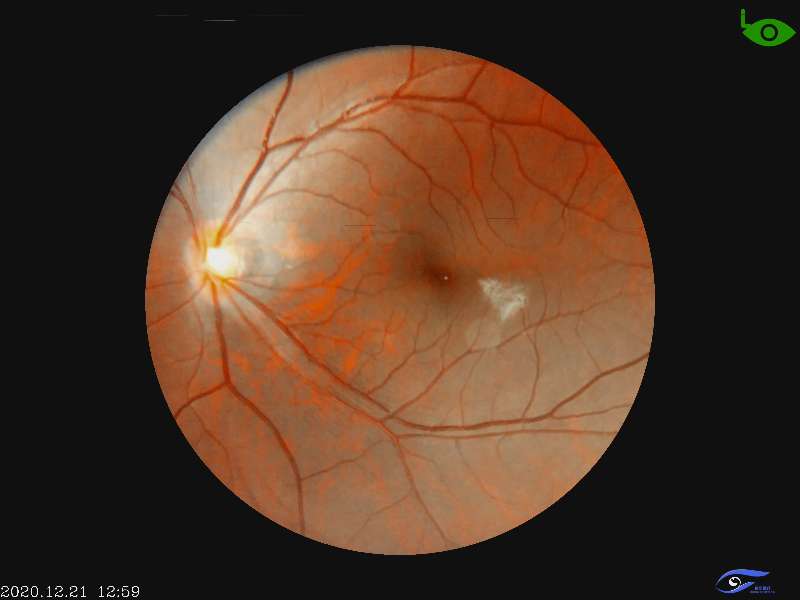

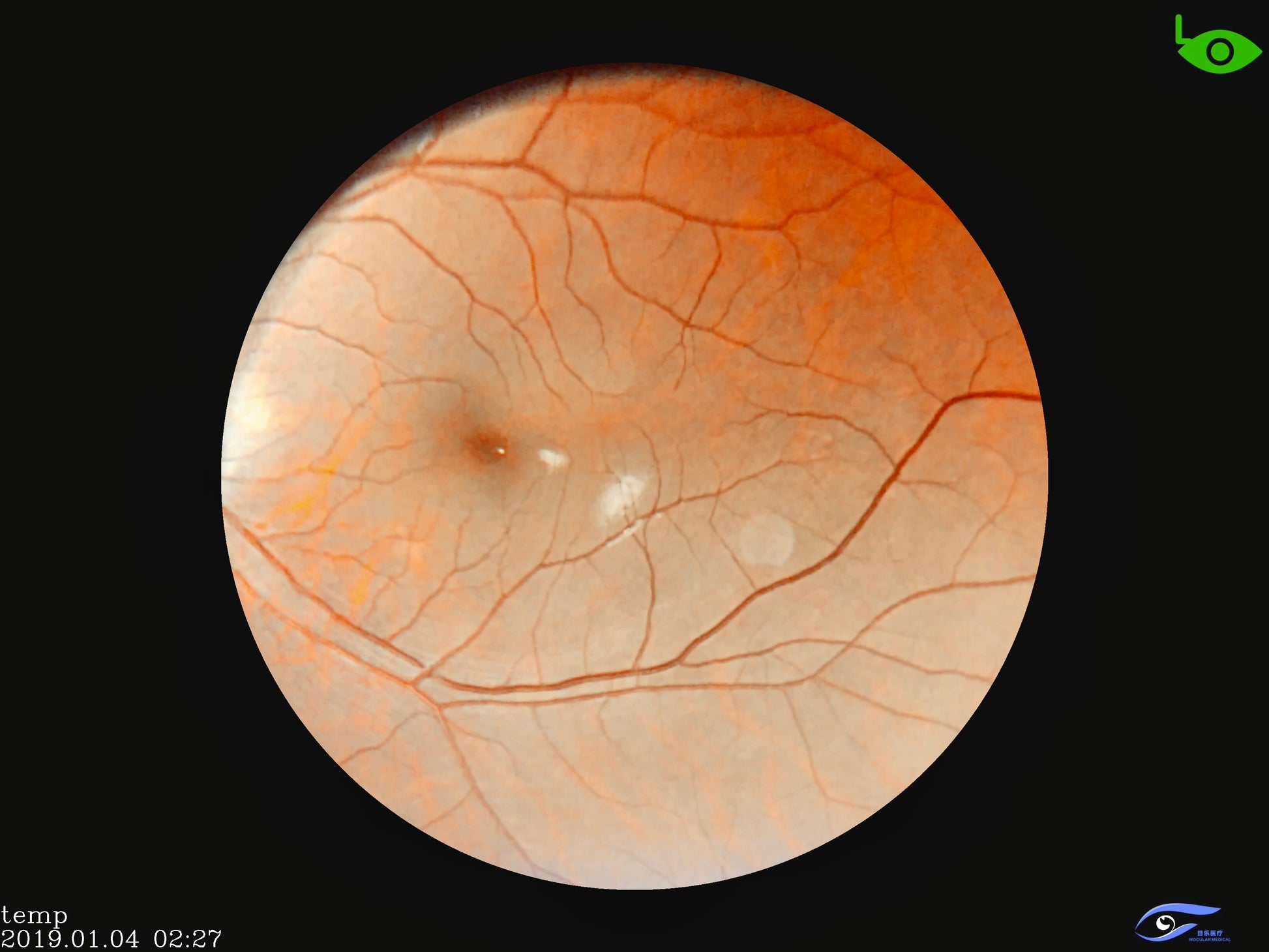

  High-Definition Fundus Imaging

  4.7-inch high-definition multi-touch screen with 12 million pixels makes the image more reductive and more realistidy.



  AI

  GPU parallel computer hardware architecture supports deep learning technolagy seamlessly connects to third-party Al platforms



• TECHNICAL PARAMETER

  Type：Non-mydriatic Portable

  FOV：50°

  Sensor Resolution：12 Million Pixels

  Minimum Pupil Diameter：2.5mm

  Working Distance:24mm

  Light Source:White LED&Infrared LED

  Focus:Manual/Auto focus

  Screen Display:4.7-inch Multi-touch Screen (Anti-glare）

  Memory:4G+64G

  Main Frequency: 4Cores@2.2GHz

  Data Transmission: USB3.0，WIFl，Bluetooth，SD,Type-C

  Other Functions: 4G，NFC

  Operation Hours: >8 Hours

  Charging Time: <2 Hours

  Net Weight<600g

  Shipping method: shipped from China, about 14 days to arrive
