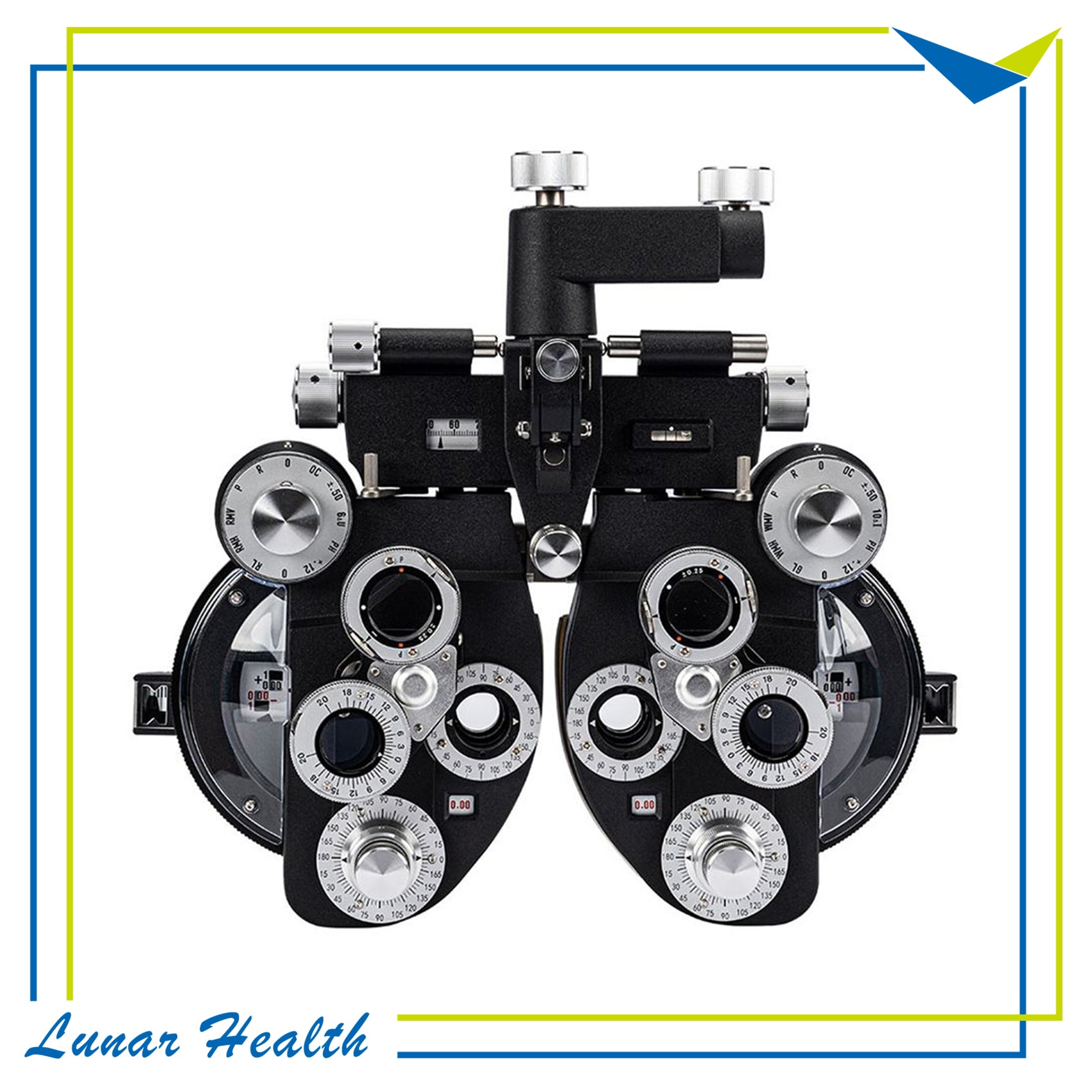

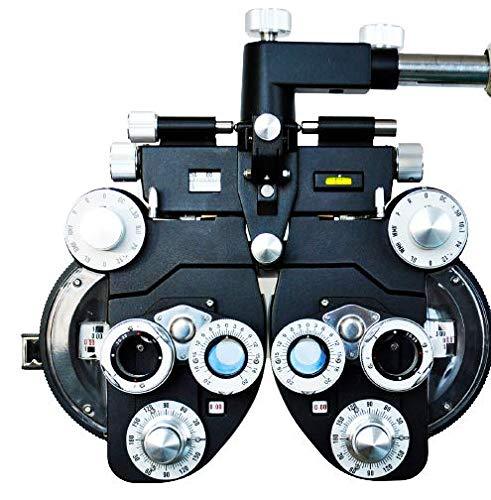

VT-50 Black Phoropter Refractor Vision Tester

1. Classic appearance, professional technology, precise measurement, easy and convenient operating, and best price value

2. All the lens are anti-reflection coated.

3. Clear scale, convenient and durable operating

4. New leveling mechanism

5. Clear scale, convenient and durable operating

6. With synthetic and overall inspecting functions on eyesight

7. Wide range of auxiliary lens combinations

8. Precision machined to finest tolerances

9. This is suitable for eyesight examination in spectacles shops, department of ophthalmology in hospitals, schools

10. Color available in black and white

1. Sphere power Range:

+16.75D to-19.00D, with minimum reading 0.25D or 0.12D
(when+0.12D auxillary lens or optional ±0. 12D lens in use)
+26.75D to-29.00D
(when optional ±10.00D lens is in use)

2. Cylinder power range:

0 to-6.00D, with minimum reading 0.25D or 0.12D
(when auxiliary lens is in use)
0 to-8.00D
(when-2.00D auxiliary lens is in use)

3. Astigmatic axis scale: 0 to 180° in 5°steps

4. Cross cylinder: ±0. 25D, reversal type (synchronized with astigmatic axis) ±0.50D optional

5. Rotary prism: 0 to20ΔD in1ΔD step

6. PD adjustment: 48mm to 80mm in 1mm step(right and left synchronized)

7. Forehead rest adjustment: 16mm backward and forward

8. Convergence:
The optical axes of the lenses are aligned at a distance of 400mm from the vertexes of the comeas
(2mm each for right and left inward) Interpupillary distance enabling convergence=57mm to 80mm

9. Corneal distance device: 2mm forward and 5mm backward from standard plane: with scale

10. Effective field of view: 19mm

(1) pair of auxiliary cylinder lens -2.00D.

(2) pair of auxiliary cylinder lens -0.12D.

(3) pair of fixing screws

(4) piece of new point card

(5) piece of near point rod.

(6) piece of card holder

(7) piece of dust cover

Weight: 13 lbs

Size: 15*15*6

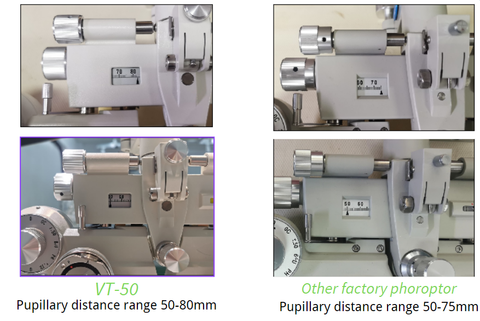

1 Large display range for pupil distance scale

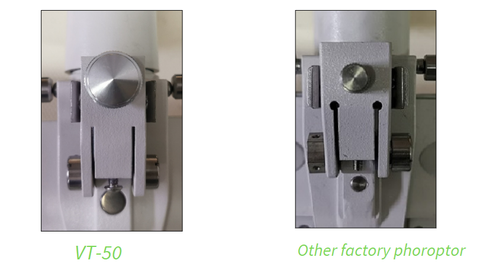

2 Easy Locking with Proximity Rod

The columnar shape gives the VT-50 a more appealing aesthetic, while allowing you to lock the torque with less effort. Our phoropter is easy to lock with the proximity rod.

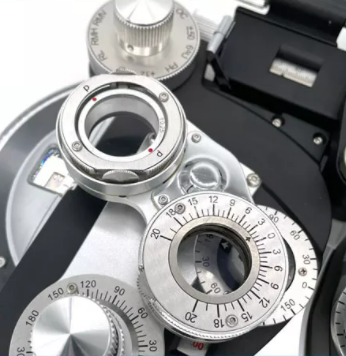

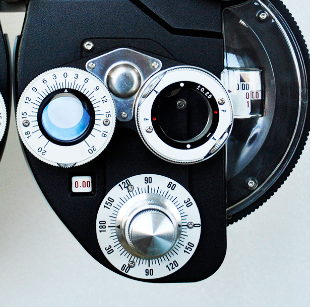

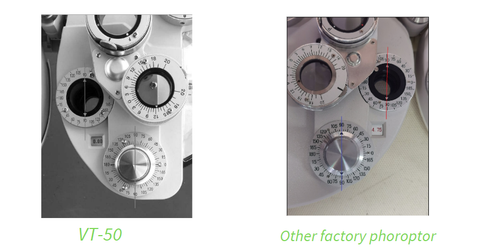

3 Get more accurate measurements of astigmatism and axis position.

VT-50 Get more accurate measurements of astigmatism and axis position.

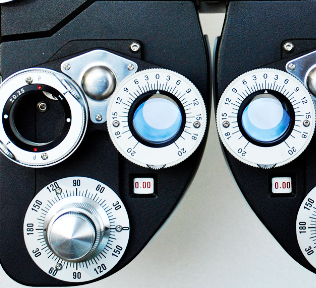

4 Prismatic paddle wheel is more convenient to turn. VT-50 prismatic paddle wheel has no sharp edges to cut your fingers.

There is a large spacing between the prism and the crossed prism,

which gives room for your hand to  fit and turn the wheel with ease.

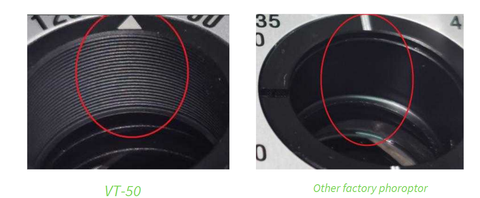

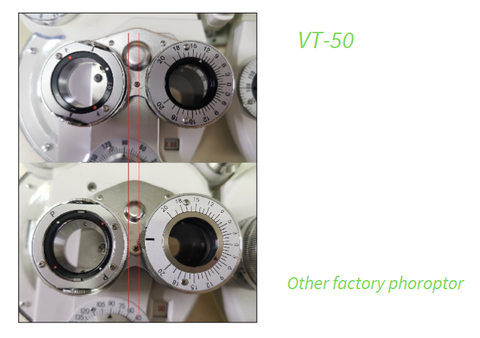

5 Attention to detail increases refraction accuracy

The VT-50 has threads on the inner wall of the aperture hole to prevent reflection and increase refraction accuracy

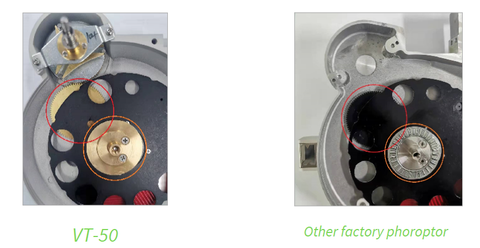

6 The key gears of the exterior mirror are copper

The key gear components of the VT-50 exterior mirror are metal copper, and the other plants are plastic or steel.

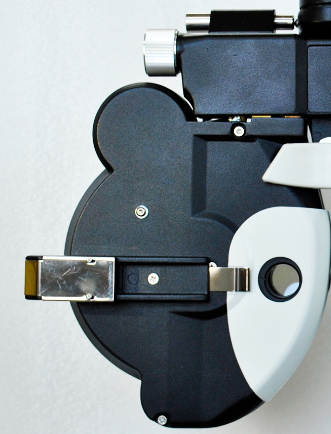

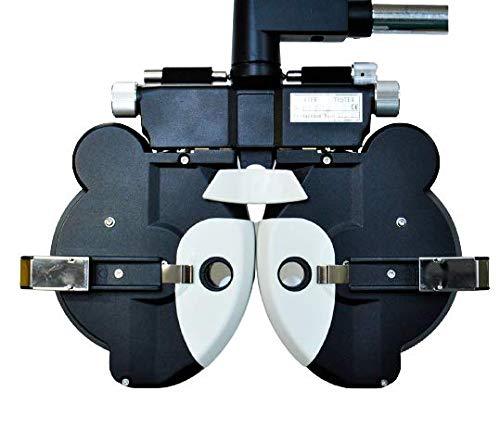

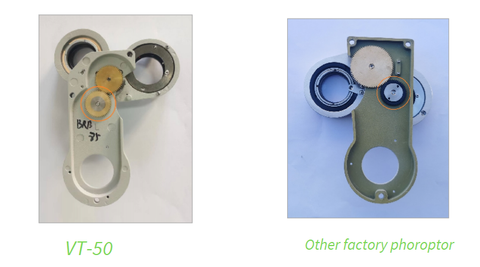

 7 Backshell gear parts made of metal.

VT-50 backshells with all metal parts and pure copper for key gear components.

Other factories use plastic and stainless steel parts.

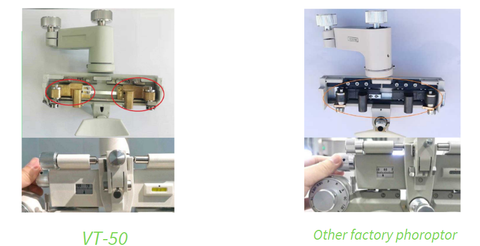

8 Cross-frame section with brass fittings

VT-50 cross frame part is made of pure brass fittings, other factories use iron fittings with painted appearance.

 The VT-50 pupil distance phoroptor rotates one turn and the pupil distance mark moves a distance of 6mm, the other pupil distance phoroptor rotate one turn and the pupil distance mark moves a distance of 2mm.
