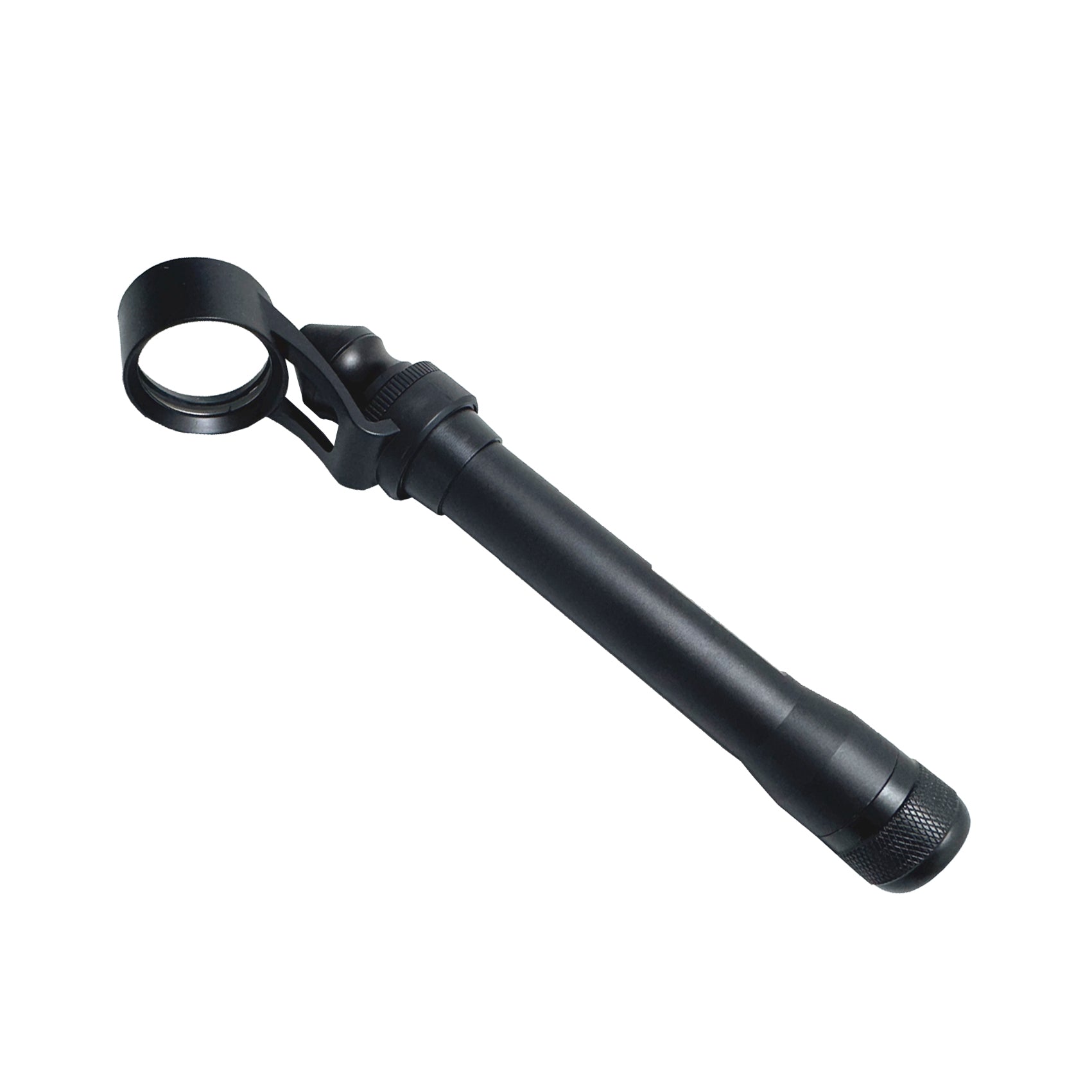

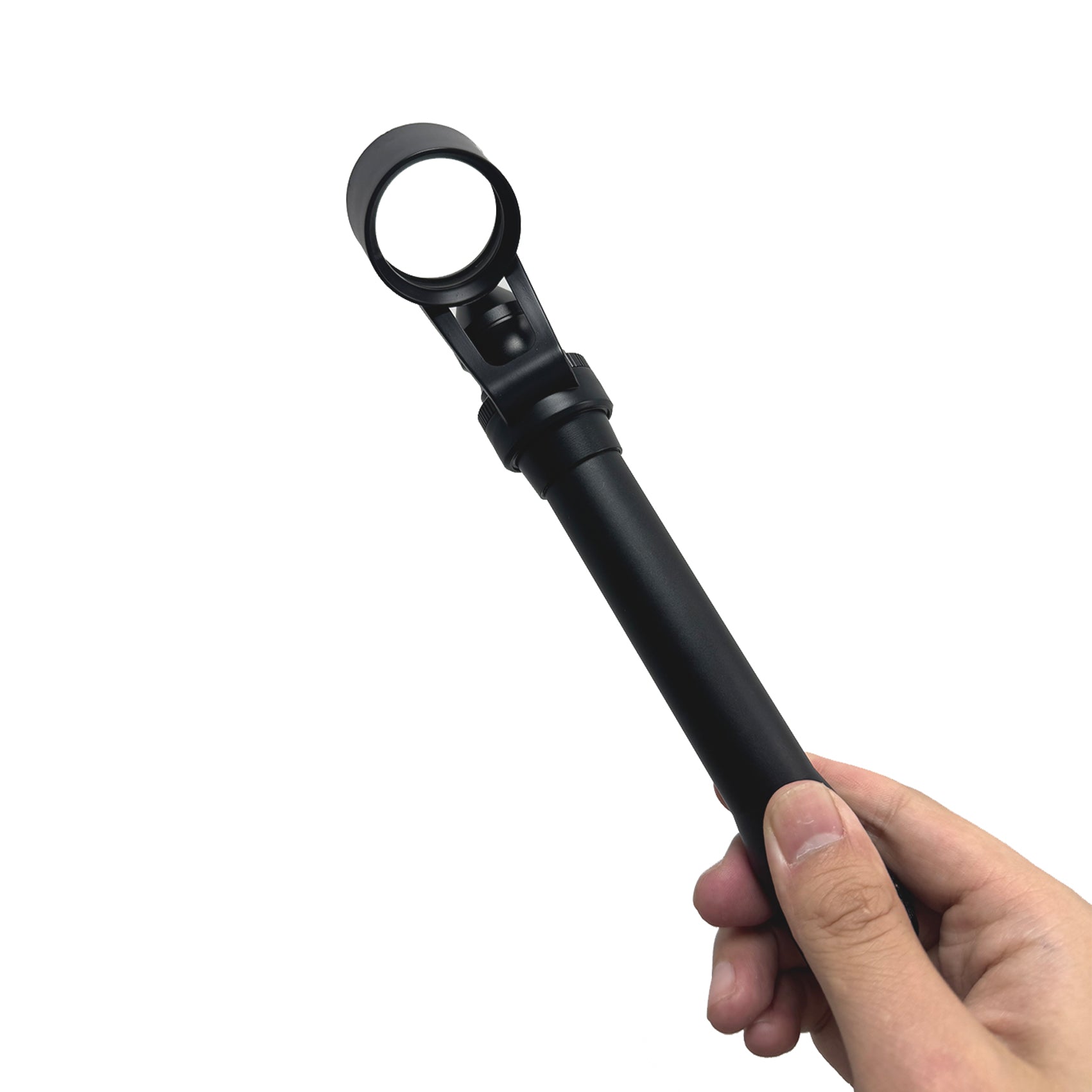

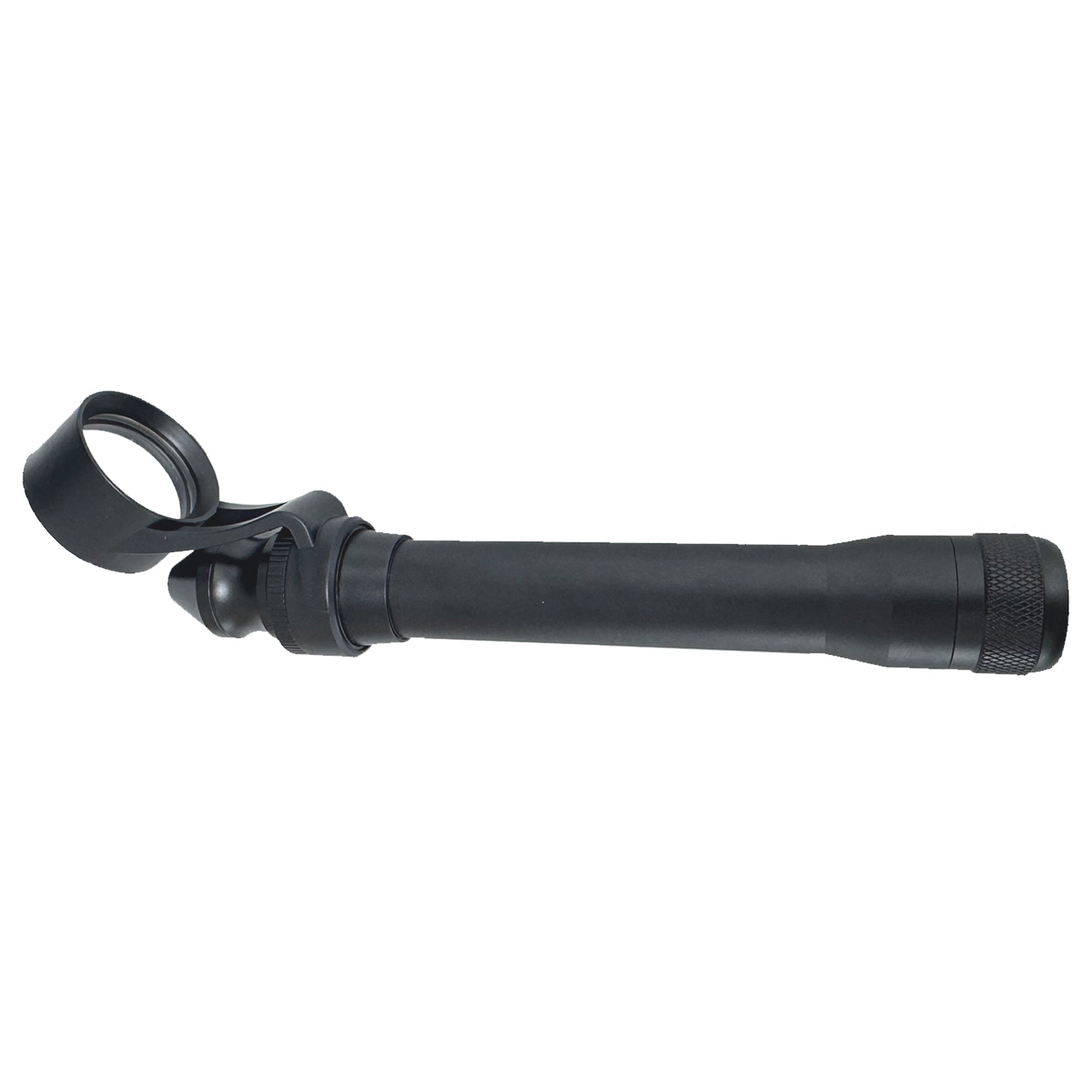

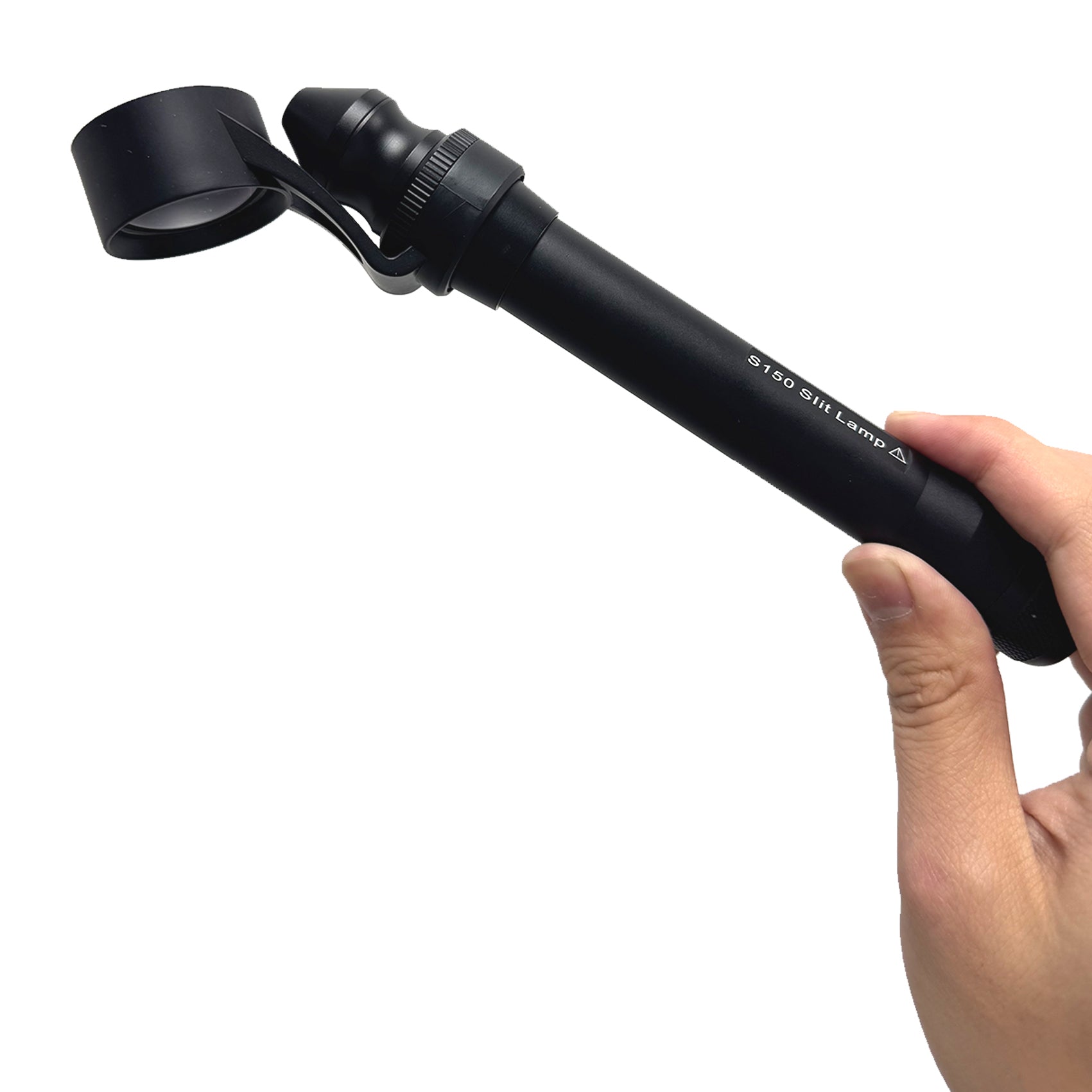

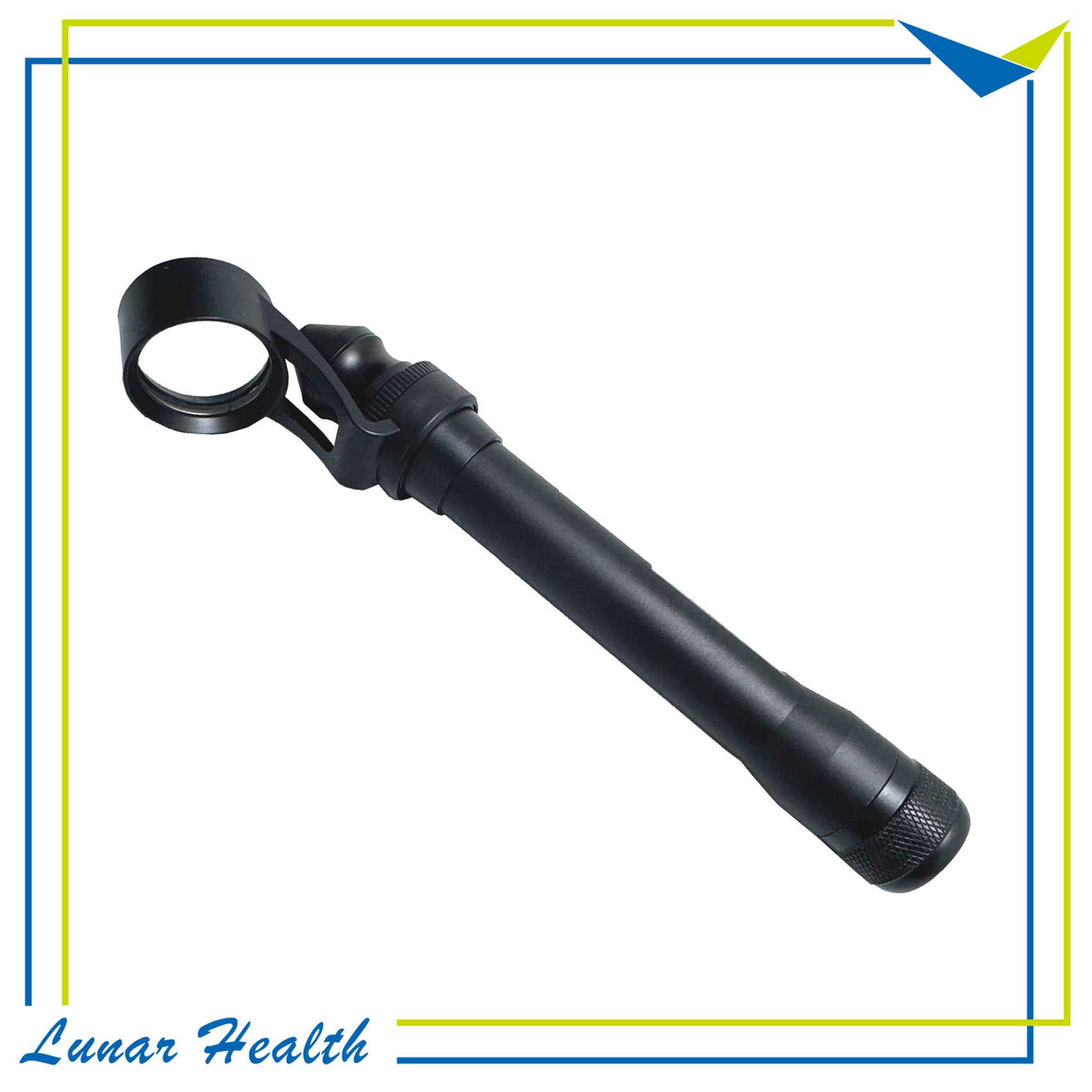

Portable Slit Lamp,S150 Motorized Table and Handheld Eyepiece Slit Lamp Instrument for Optics,5X Magnification,Optical Ophthalmic Equipment,Working Distance 12~32mm,Slit Adjustable

Operation Instructions

Press the Power Switch to turn the slit lamp ON/OFF.

Loosen the Locking Screw.

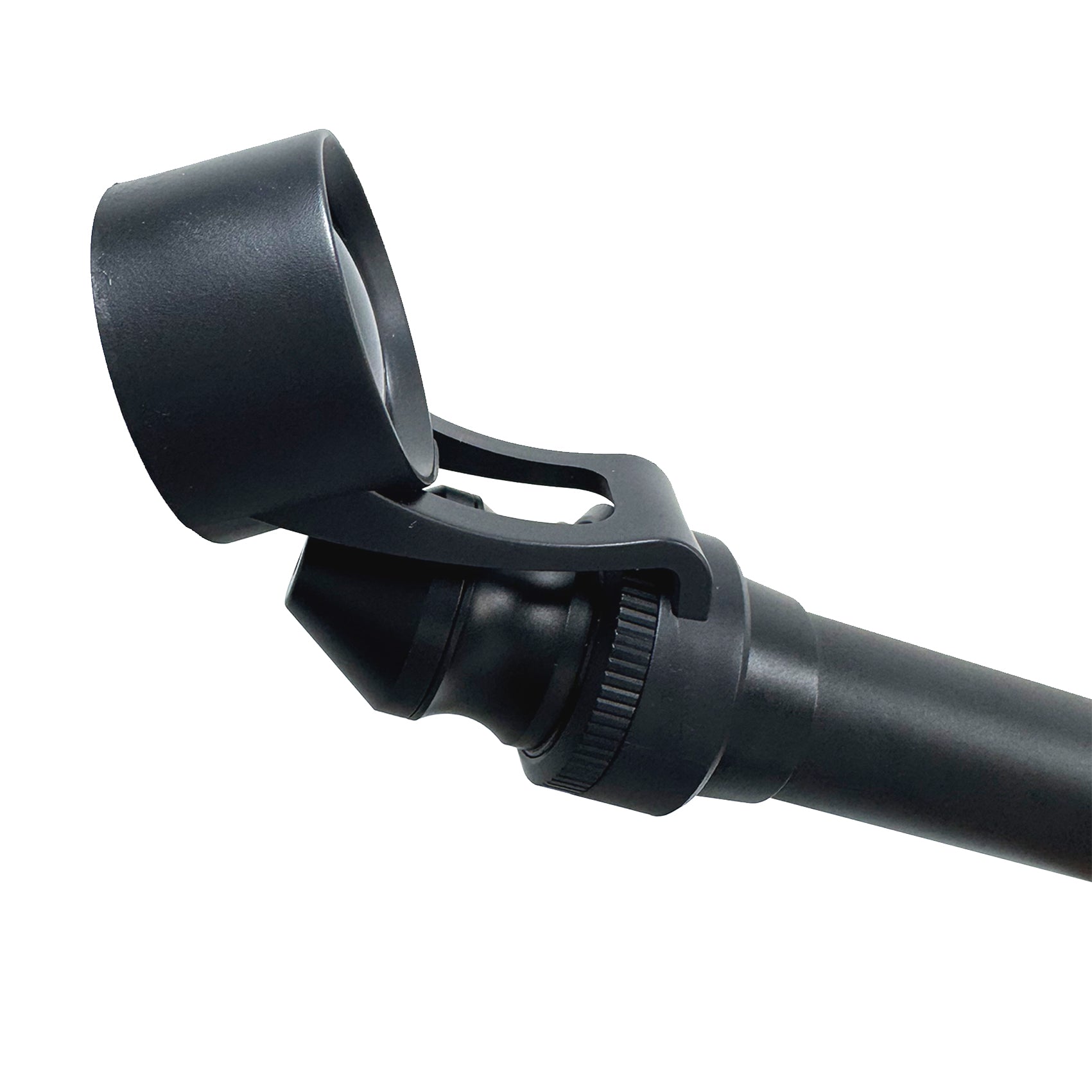

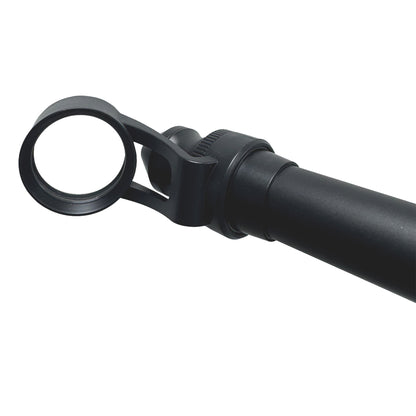

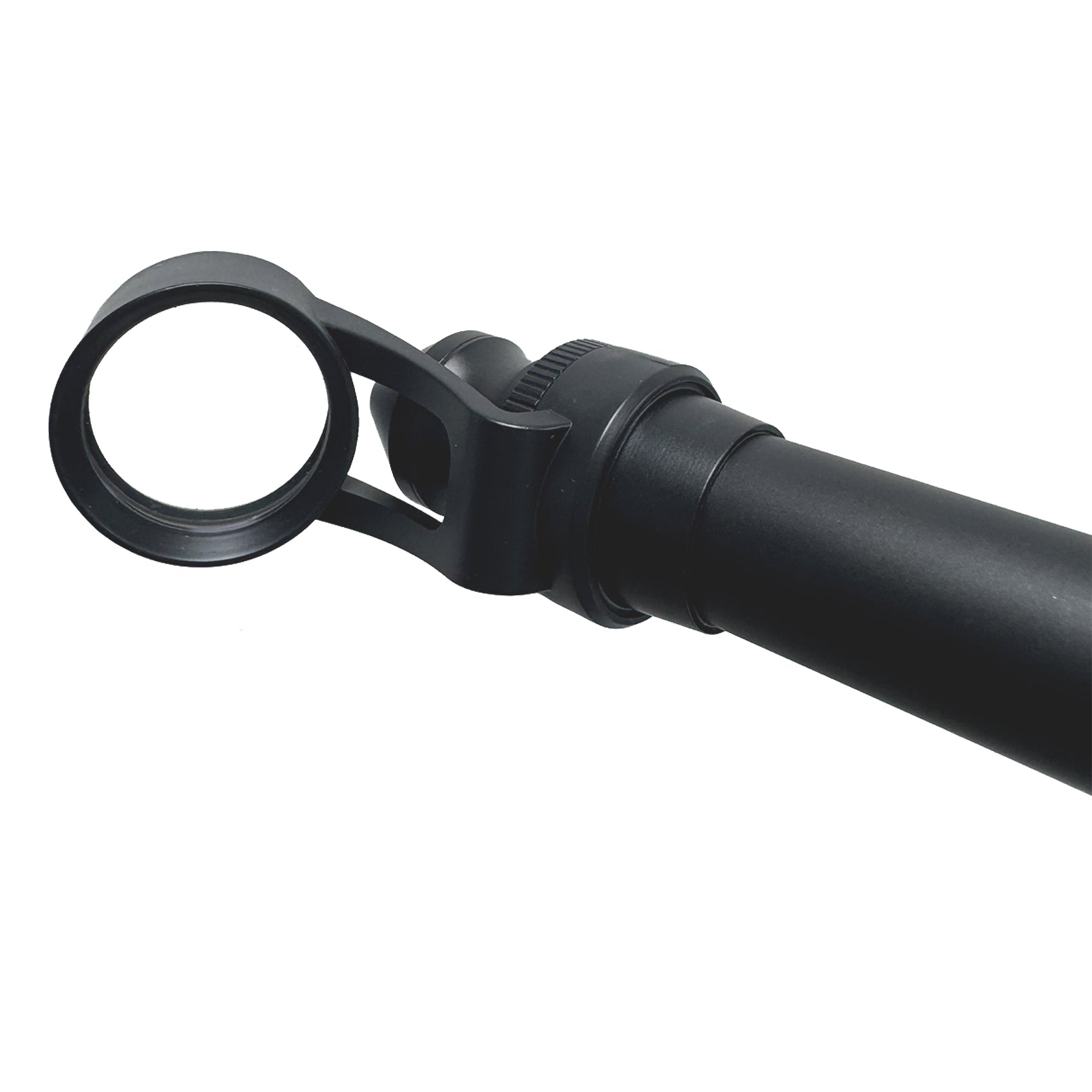

Twist the Lamp Body while keeping the Magnifier Bracket still, adjusting the slit angle as desired.

Move the Lamp Body forward or backward to position the magnifier for comfortable observation.

Fasten the Locking Screw to secure the setup.

Adjust the Lamp Head back and forth to control slit width, length, and light intensity.

Specifications

Model: S150

Magnification: 5X

Slit Length: 5mm–11mm

Minimum Slit Width: 0.5mm

Working Distance: 12–32mm

Light Source: 3V / 1W LED lamp

Battery Life: Over 3 hours
