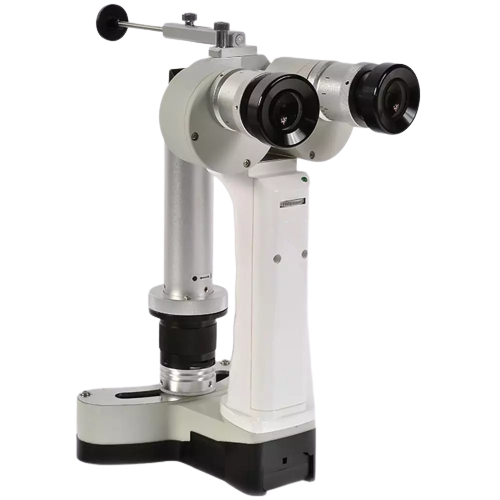

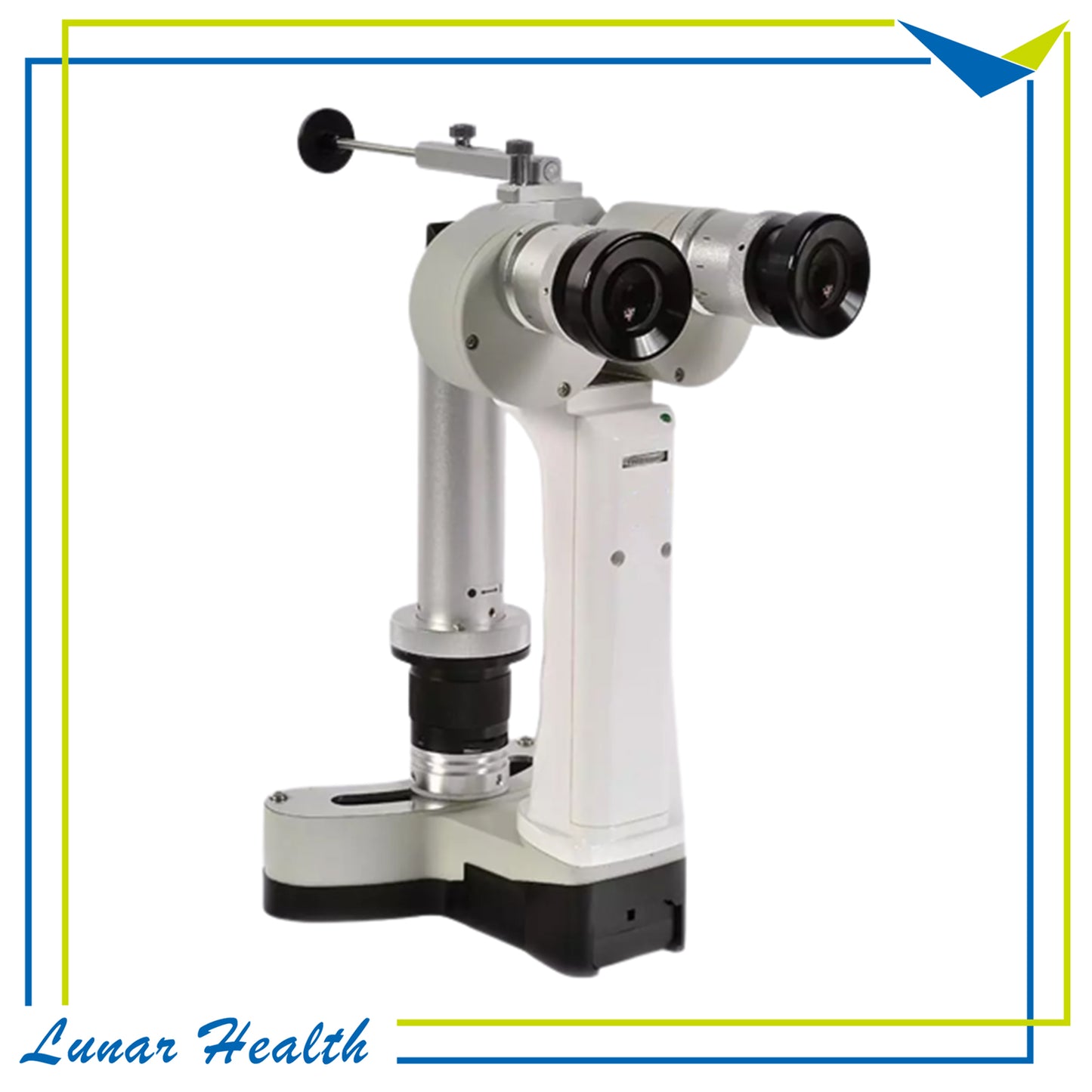

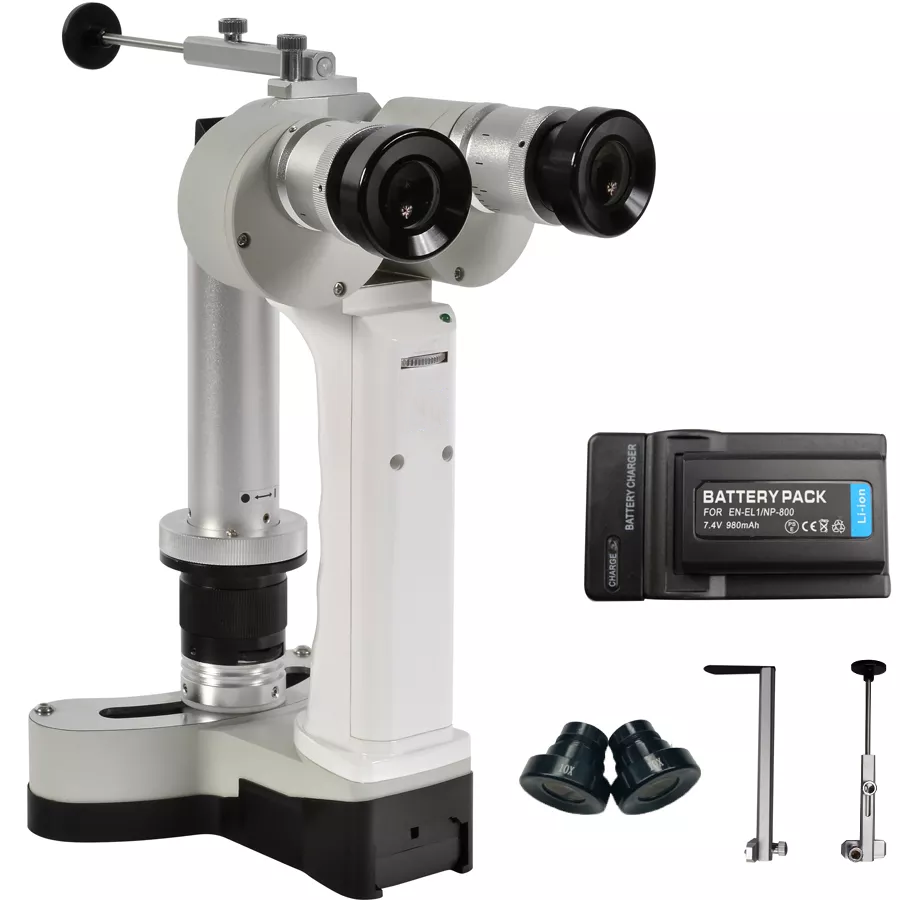

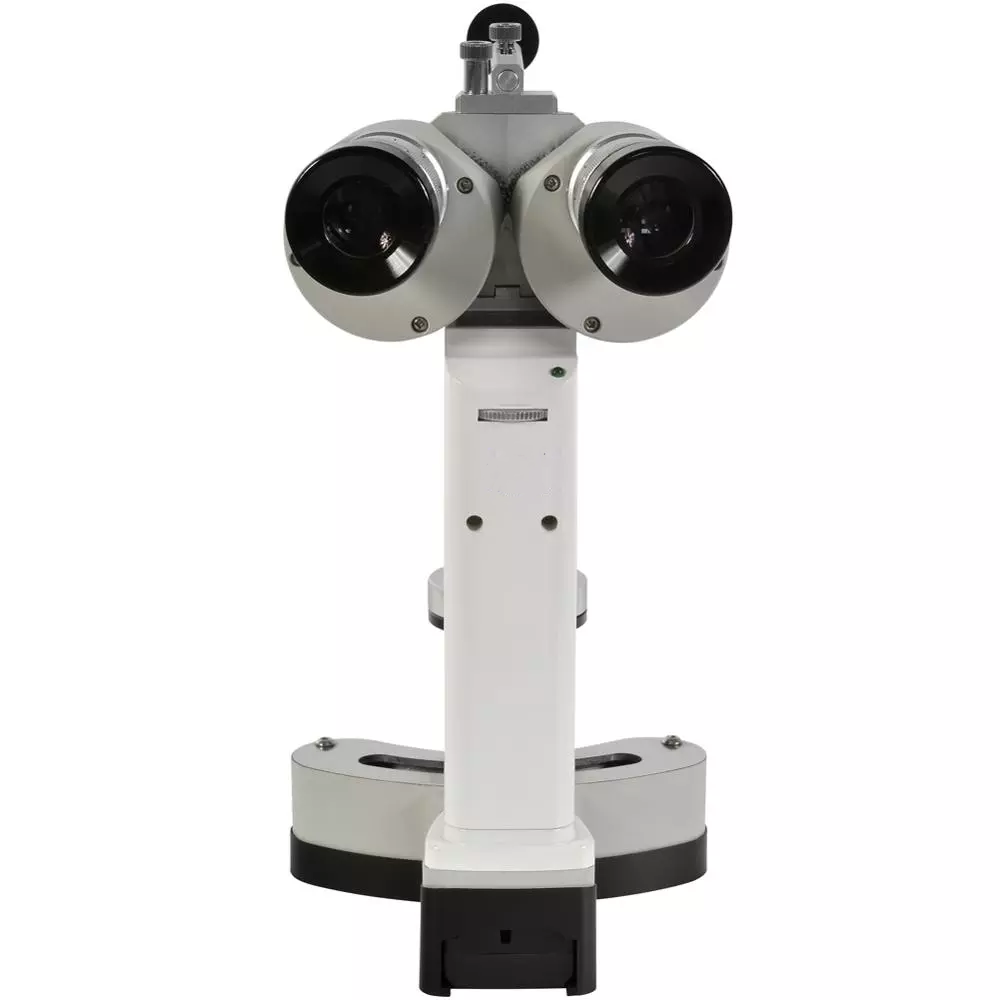

SL-RVK Portable Hand Slit Lamp
- Description
- Features
- Product Spotlight
- Accessories
- Download
Description
The Portable Slit Lamp utilizes a high luminance white LED light source, coupled with a lightweight, compact design, which could give you the comfortable of using a slit lamp in the palm of your hand. It is the best choice for non-ambulatory patient visits, off-site clinics, examinations of young children and patients who don't fit into the traditional examination lane.
Features
- Link-able binocular optical system, with 2 magnifications
- White LED lamp illumination
- Four filters: Head-absorption, grey, red-free, and cobalt blue
- Can also be use for veterinary purposes

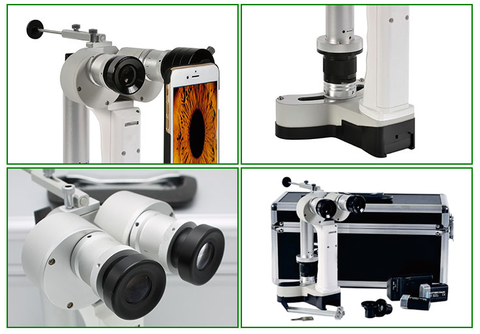

- It can be updated by iPhone and Android phone eyepiece adapters
- Weight: 6 lbs
- Size: 21*13*12
- Type of protection against electric shock: Internal Battery type
- Degree of protection against electric shock: Type B
Product Details
Microscope
- Type: Binocular crossed stereo microscope
- Objective Lens: 1x
- Total Magnifications: 10x, 16x

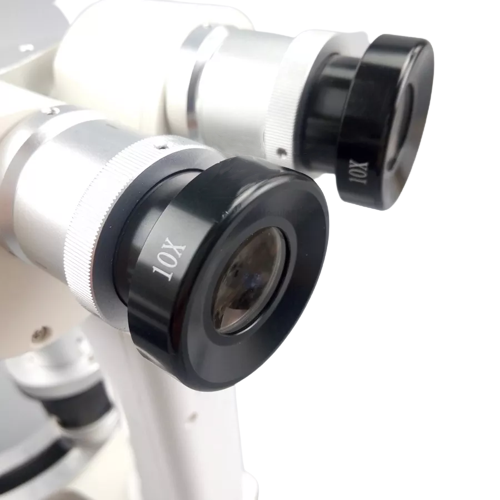

- Eyepiece: 10x, 16x
- Pupillary Distance: 48~70mm
- Working Distance: 80mm
- Slit illumination part
- Slit Width: 0~10mm continuously adjustable
- Slit Height: 1mm, 3mm, 5mm, 10mm
- Spot Diameter: 1mm, 3mm, 5mm, 10mm
- Slit Rotating Angle: horizontal ±30°
- Diopter Compensation ±7D
- Filters: Head absorption, Grey, Red free, Cobalt blue
- Illumination: White LED
- Working Hours: 5~6 hours
- Voltage/Frequency:
- AC 220V ± 10% 50Hz ± 1Hz
- AC 110V ± 10% 60Hz ± 1Hz
- Input power: 18VA

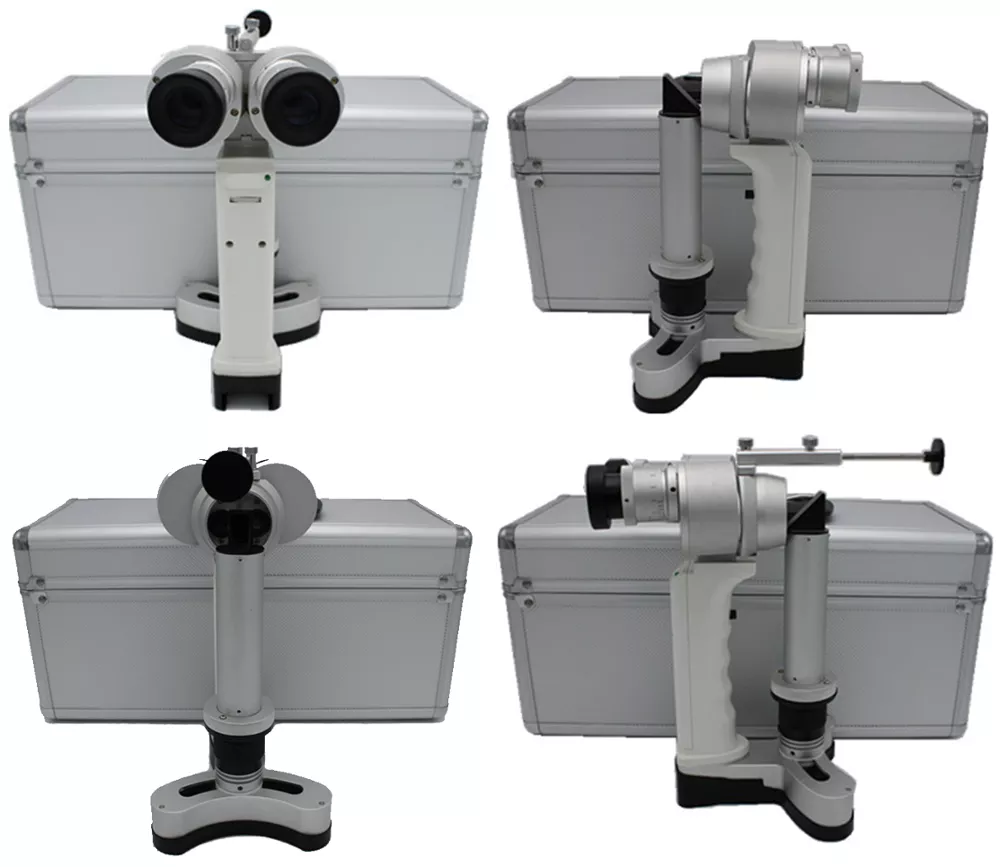

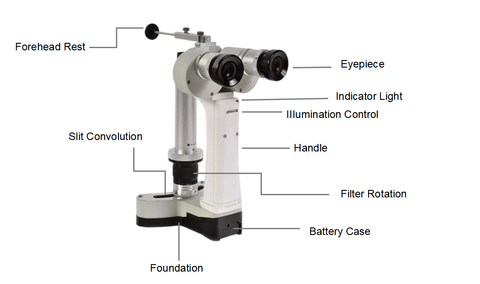

Product Spotlight

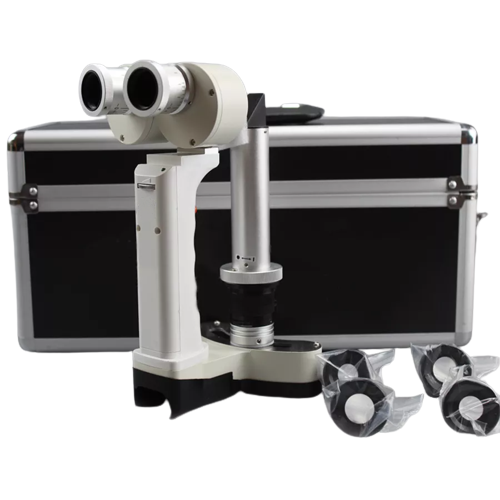

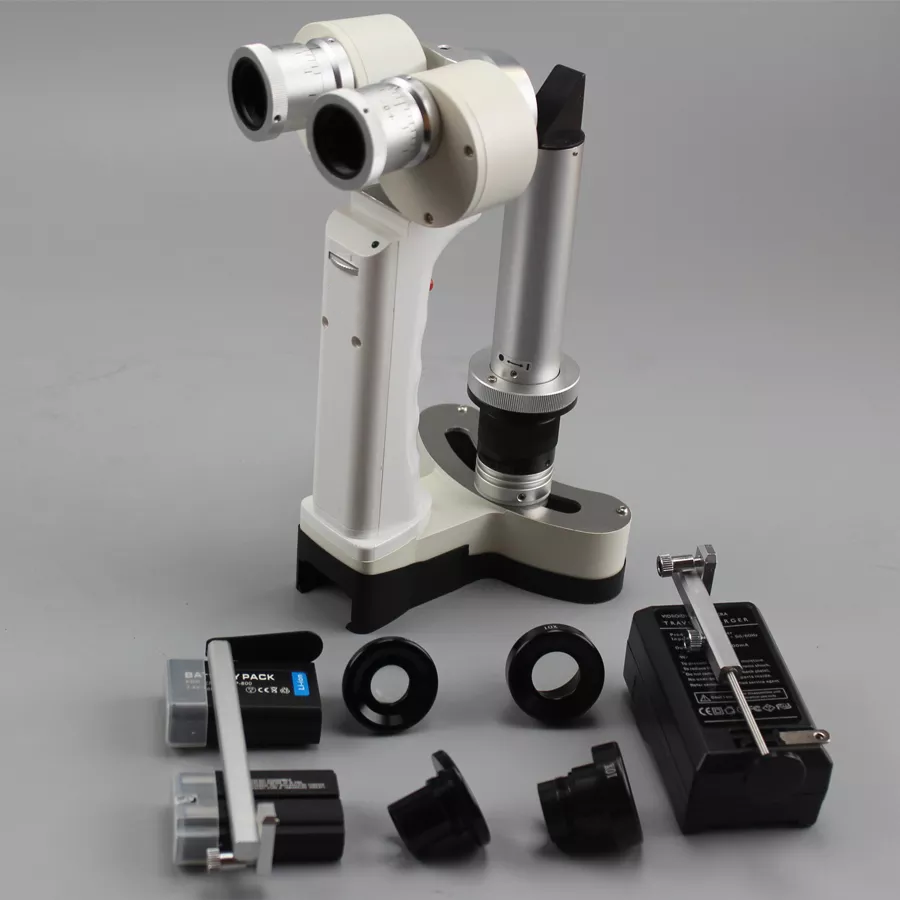

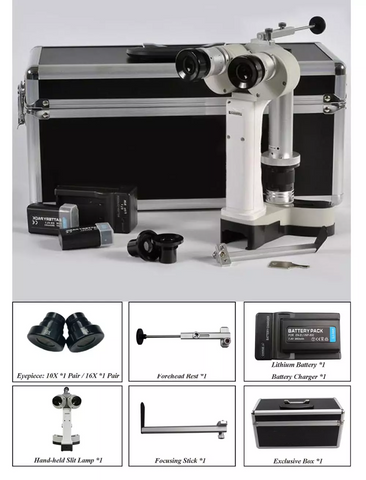

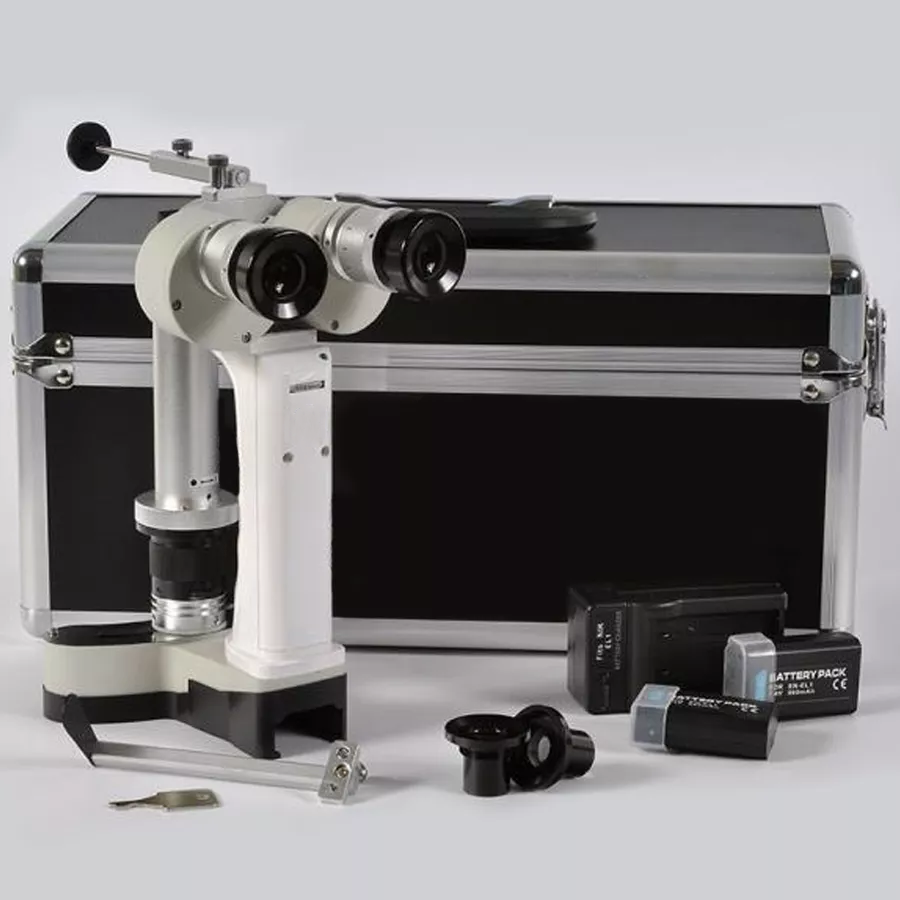

Accessories

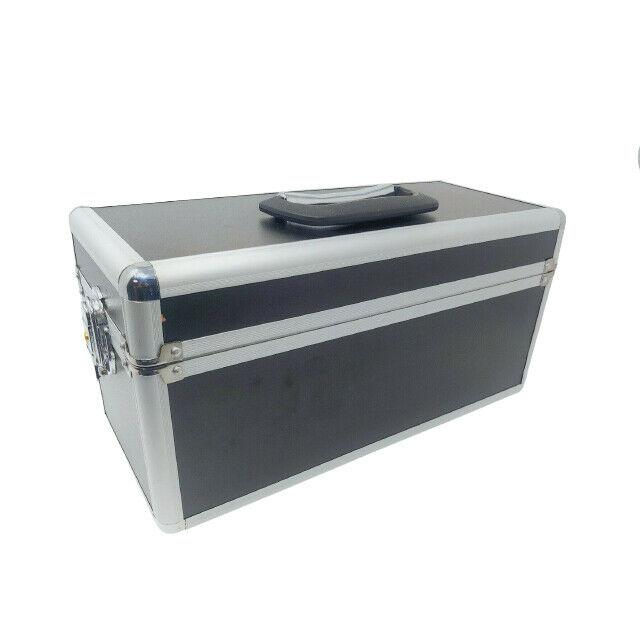

Carrying case(1 pc)
Battery charger(1 pc)
(x2 Li-ion Battery)
Diopter adjustment bar(1 pc)
Forehead support(1 pc)
Instruction manual(1 pc)
X16 objective lens (x2)
X10 objective lens (x2)
